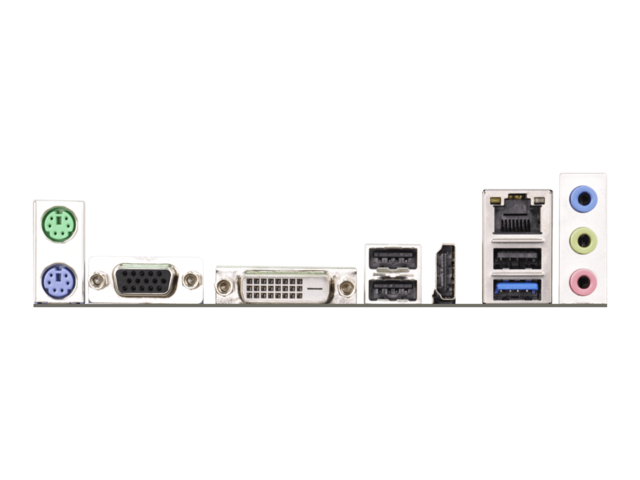

Интерфейси:

• 1 x PS/2 мишка
• 1 x PS/2 клавиатура
• 1 x D-Sub
• 1 x DVI-D
• 1 x HDMI
• 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD аудио жака: Line in / Front Speaker / Microphone

Слотове за разширение:

• 1 x PCI Express 2.0 x16 слот (PCIE2 @ x1 режим)
• 2 x PCI Express 2.0 x1 слот

Конектори:

• 1 x Print Port Header
• 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion Header
• 1 x CPU Fan Connector (3-pin)
• 1 x Chassis Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Съхранение:

• 2 x SATA2 3.0 Gb/s конектори, поддържат NCQ, AHCI и Hot Plug

Памет:

• 2 цокъла DDR3/DDR3L DIMM, поддържащи до 16 GB системна памет
• Поддръжка на модули памет DDR3/DDR3L 1333/1066
