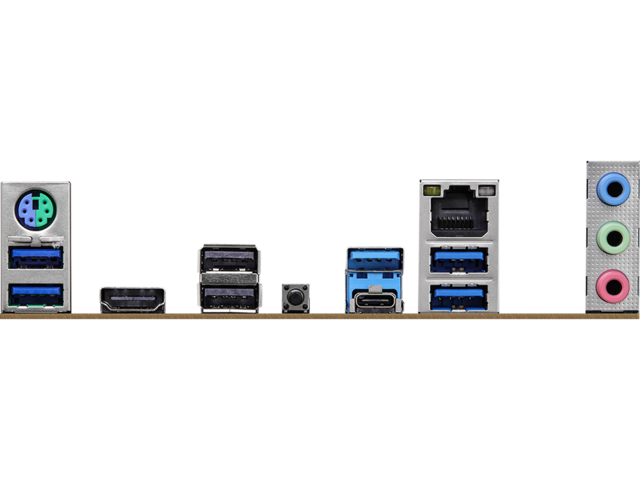

Интерфейс:

• 3 x Antenna Mounting Points

• 1 x PS/2 Mouse/Keyboard Port

• 1 x HDMI Port

• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

• 1 x BIOS Flashback Button

• HD Audio Jacks: Line in / Front Speaker / Microphone

Памет:

• Двуканална технология за памет DDR5

• 4 x DDR5 DIMM слота

• Поддържа DDR5 без ECC, небуферирана памет до 5800+(OC)

• Поддържа модули памет ECC UDIMM (работят в режим без ECC)

• Макс. капацитет на системната памет: 128GB

• Поддържа Intel® Extreme Memory Profile (XMP) 3.0

Слотове за разширение:

• CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), поддържа x16
• Chipset:
  - 1 x PCIe 4.0 x16 Slot (PCIE3), поддържа x4
  - 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5)
  - 1 x M.2 Socket (Key E), поддържа тип 2230 WiFi/BT PCIe WiFi модул и  Intel^® CNVi (Integrated WiFi/BT)
• Поддържа AMD CrossFire™

Съхранение:

• 4 x SATA3 6.0 Gb/s конектори

• 1 x Hyper M.2 сокет (M2_1, Key M), поддържа тип 2260/2280 PCIe Gen4x4 (64 Gb/s)

• 1 x Hyper M.2 сокет (M2_2, Key M), поддържа тип 2242/2260/2280 PCIe Gen4x4 (64 Gb/s)

• 1 x Hyper M.2 сокет (M2_3, Key M), поддържа тип 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s)

• Поддържа RAID 0, RAID 1, RAID 5 и RAID 10 за SATA устройства за съхранение

• Поддържа RAID 0, RAID 1 и RAID 5 за M.2 NVMe устройства за съхранение

Конектори:

• 1 x SPI TPM Header

• 1 x Power LED and Speaker Header

• 1 x RGB LED Header

• 2 x Addressable LED Headers

• 1 x CPU Fan Connector (4-pin)

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x Front Panel Audio Connector

• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
