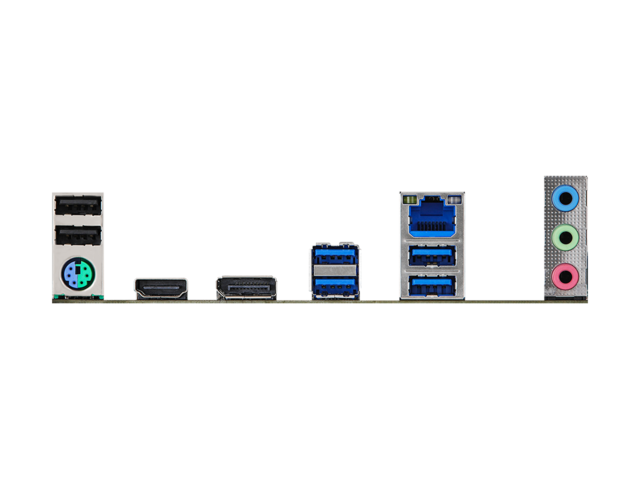

Интерфейси:
- 2 x USB 3.2 Gen2 (10 Gb/s)
- 2 x USB 3.2 Gen1
- 2 x USB 2.0
- HDMI Port
- DisplayPort 1.4
- 3 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Слотове за разширение:
11th Gen Intel® Core™ Processors: 2 x PCI Express x16 Slots (PCIE2/PCIE4: single at Gen4x16 (PCIE2); dual at Gen4x16 (PCIE2) / Gen3x4 (PCIE4))
10th Gen Intel® Core™ Processors: 2 x PCI Express x16 Slots (PCIE2/PCIE4: single at Gen3x16 (PCIE2); dual at Gen3x16 (PCIE2) / Gen3x4 (PCIE4))
- 3 x PCI Express 3.0 x1 Slots
- Поддържа AMD Quad CrossFireX™ и CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
- 15μ Gold Contact in VGA PCIe Slot (PCIE2)
RAID:
- Поддържа RAID 0, RAID 1, RAID 5 и RAID 10 за SATA
- Поддържа RAID 0 и RAID 1 за M.2 NVMe
Конектори:
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Съхранение:
- 6 x SATA3 6.0 Gb/s
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Памет:
- 4x DDR4 слотове за памет, поддържащи до 128GB
- 11-то поколение Intel® Core ™ процесори поддържат DDR4 non-ECC, не-буферирана памет до 4800+ (OC)
- 10-то поколение Intel® Core ™ процесори поддържат DDR4 non-ECC, не-буферирана памет до 4666+ (OC)
- Поддържа ECC UDIMM модули памет (работят в не-ECC режим)
- Поддържа Intel Extreme Memory Profile (XMP) 2.0
