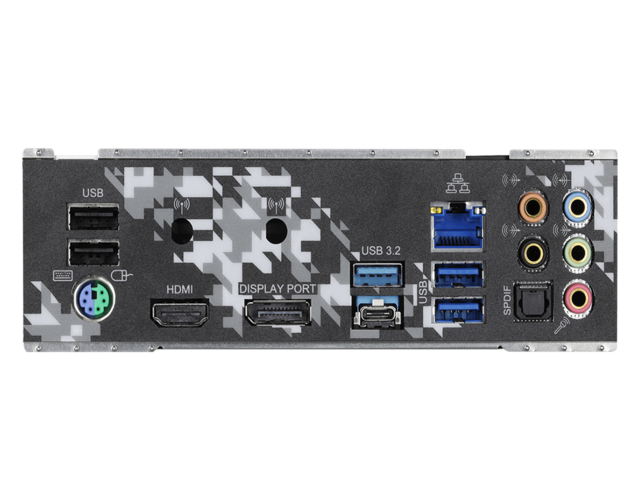

Интерфейси:

• 2 x Antenna порта
• 1 x PS/2 комбиниран порт за мишка/клавиатура
• 1 x HDMI
• 1 x DisplayPort 1.4
• 2 x USB 2.0 порта
• 2 x USB 3.2 Gen1 порта
• 1 x USB 3.2 Gen2 Type-A порт (10 Gb/s)
• 1 x USB 3.2 Gen 2 Type-C порт (10 Gb/s)
• 1 x RJ-45 LAN порт с LED
• 1 x Optical SPDIF Out Port
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Слотове за разширение:

• 2 x PCI Express 3.0 x16 слота (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE1) / x4 (PCIE3)
• 3 x PCI Express 3.0 x1 слота
• 1 x M.2 Socket (Key E), поддържа тип 2230 WiFi/BT модул и Intel CNVi (Integrated WiFi/BT)

Конектори:

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel^® Z490) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
• 1 x Front Panel Type C USB 3.2 Gen1 Header (Intel^® Z490) (Supports ESD Protection)

Съхранение:

• 6 x SATA3 6.0 Gb/s конектора, поддържат RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI и Hot Plug
• 1 x Ultra M.2 Socket (M2_2), поддържа M Key тип 2260/2280 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)**
• 1 x Ultra M.2 Socket (M2_3), поддържа M Key тип 2260/2280/22110 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)

Памет:

• 4 x DDR4 DIMM цокъла, поддържащи до 128GB системна памет
• Архитектура с две канални памети
• DDR4 4266+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, небуферирана памет
•  Intel Extreme Memory Profile
