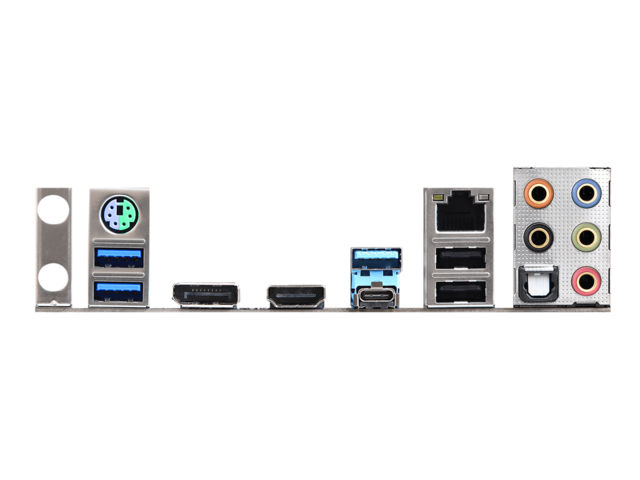

Интерфейси:

• 1 x PS/2 порт за клавиатура и мишка
• 1 x Antenna Bracket
• 1 x HDMI Port
• 1 x DisplayPort 1.2
• 1 x Optical SPDIF Out Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Ports (Intel^® Z390) (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Слотове за разширение:

• 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))

• 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

Конектори:

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug
•  1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
