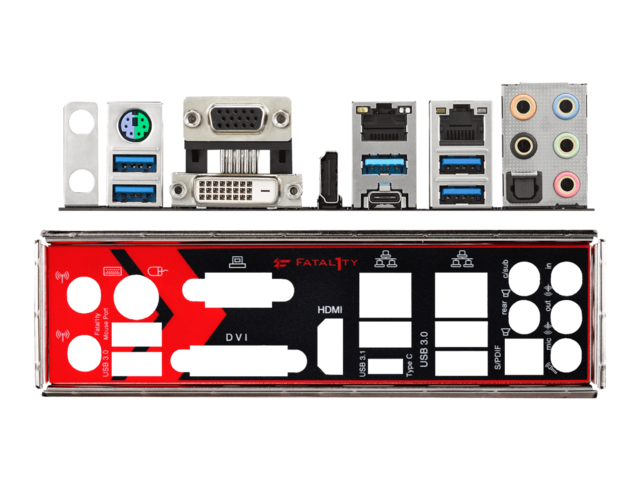

Интерфейси:

• 2 x Antenna Ports
• 1 x PS/2 порт за мишка и клавиатура
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM2142) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM2142) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 3 x USB 3.1 Gen1 Ports (Intel Z270) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 1 x Fatal1ty Mouse Port (USB 3.1 Gen1) (Intel Z270) (Поддържа ESD Protection (ASRock Full Spike Protection))
• 2 x RJ-45 LAN Ports с LED (ACT/LINK LED и SPEED LED)
• HD аудио жака: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Слотове за разширение:

• 3 x PCI Express 3.0 x16 слота (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))*
• 3 x PCI Express 3.0 x1 слота (Flexible PCIe)
• Поддържа AMD Quad CrossFireX, 3-Way CrossFireX и CrossFireX
• Поддържа NVIDIA Quad SLI и SLI
• 1 x M.2 Socket (Key E), поддържа тип модул 2230 WiFi/BT
• 15μ Gold Contact in VGA PCIe Slot (PCIE2)

Kонектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 1 x AURA RGB LED Header
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU Optional/Water Pump Fan Connector (4-pin)
• 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x Chassis Optional/Water Pump Fan Connector (4-pin)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 1 x Thunderbolt™ AIC Connector (5-pin)
• 1 x Thunderbolt™ AIC Connector (10-pin)
• 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel^® Z270) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Intel^® Z270) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Dr. Debug with LED
• 1 x Power Switch with LED
• 1 x Reset Switch with LED
• 1 x XMP Switch

Съхранение:

• 6 x SATA3 6.0 Gb/s конектори, поддържащи RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15 и Intel Smart Response Technology), NCQ, AHCI и Hot Plug
  - 2 x SATA3 6.0 Gb/s комектор ASMedia ASM1061, поддържащи NCQ, AHCI и Hot Plug
  - 1 x Ultra M.2 Socket (M2_1), поддържа M Key тип 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)
  - 1 x Ultra M.2 Socket (M2_2), поддържа M Key тип 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)

• Двуканална технология на паметта DDR4
• 4 x DDR4 DIMM слота
• Поддържа DDR4 3866+(OC)*/3733(OC)/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400**/2133 non-ECC, небуферирана памет
• Поддържа ECC UDIMM модули памет (работещ в non-ECC режим)
• Максимален капацитет на системната памет: 64GB
• Поддържа Intel Extreme Memory Profile (XMP) 2.0
• 15μ Gold Contact in DIMM слота

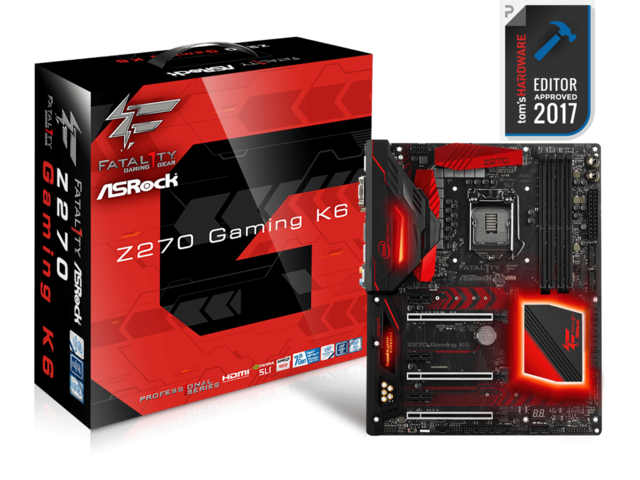

Комплектът съдържа:

• I/O Shield
• 4 x SATA Data кабела
• 1 x ASRock SLI_HB_Bridge_2S Card
• 3 x винта за M.2 сокети

Сертификати:

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
