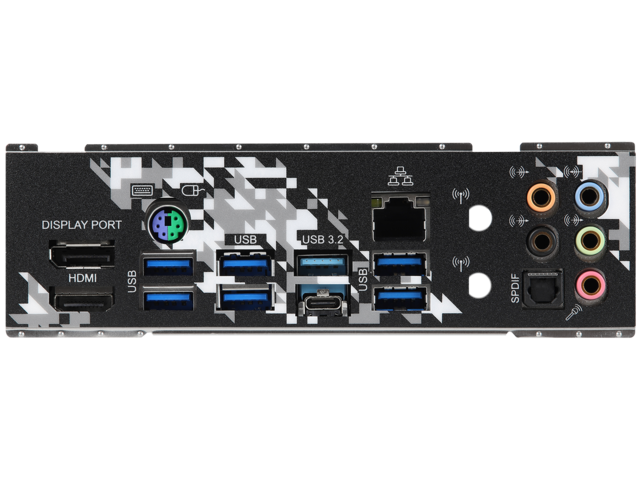

Интерфейси:

• 2 x Antenna Ports (on I/O Panel Shield)
• 1 x PS/2 порт за клавиатура и мишка
• 1 x HDMI Port
• 1 x DisplayPort 1.2
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
• 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Слотове за разширение:

• AMD Ryzen series CPUs (Matisse)

  • 2 x PCI Express 4.0 x16 слот (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))

• AMD Ryzen series CPUs (Pinnacle Ridge)

  • 2 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen4x4 (PCIE5))

• AMD Ryzen series CPUs (Picasso)

  • 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))

  •  3 x PCI Express 4.0 x1 Slots

  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Конектори:

Съхранение:

• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)
• 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)
• 8 x SATA 6Gb/s конектори

• Поддържа RAID 0, RAID 1 и RAID 10
