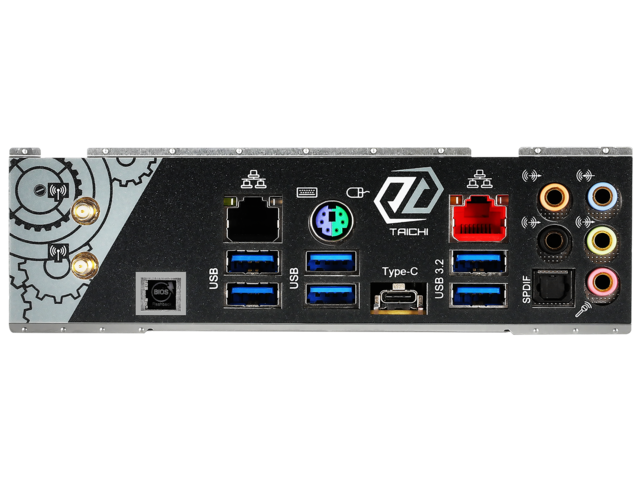

Интерфейси:

• 2 x Antenna Ports
• 1 x PS/2 комбиниран порт
• 2 x USB 3.2 Gen2 Type-A порта (10 Gb/s)
• 1 x USB 3.2 Gen2x2 Type-C порт (20 Gb/s)
• 4 x USB 3.2 Gen1 порта
• 2 x RJ-45 LAN порта с LED (ACT/LINK LED and SPEED LED)

• 1 x Optical SPDIF Out Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Слотове за разширение:

• 3 x PCI Express 4.0 x16 слота (PCIE1/PCIE3/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE3); triple at x16 (PCIE1) / x16 (PCIE3) / x16 (PCIE4)
• 1 x PCI Express 4.0 x1 слот
• 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax module

Конектори:

• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
• 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button with LED
• 1 x Clear CMOS Button

Съхранение:

• 8 x SATA3 6.0 Gb/s конектора, поддържащи RAID (RAID 0, RAID 1 и RAID 10), NCQ, AHCI и Hot Plug
• 1 x Hyper M.2 Socket (M2_1), поддържа M Key тип 2260/2280 M.2 PCI Express модул до Gen4x4 (64 Gb/s)
• 1 x Hyper M.2 Socket (M2_2), поддържа M Key тип 2260/2280/22110 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen4x4 (64 Gb/s)
