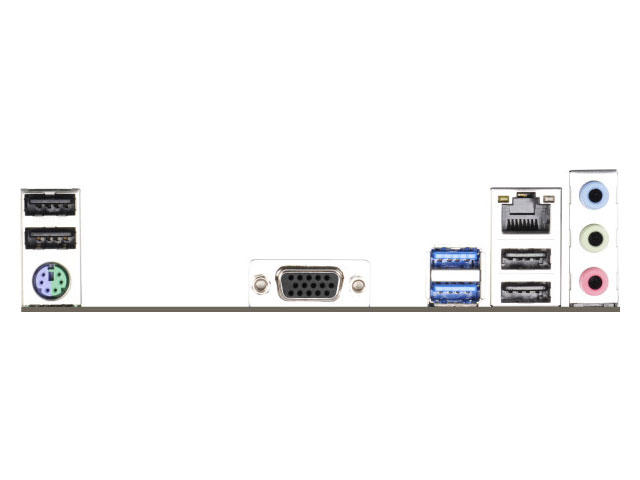

Интерфейси:

• 1x PS/2 мишка/клавиатура
• 1x D-Sub Port
• 4x USB 2.0
• 2x USB 3.0
• 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD аудио жак: Line in/Front Speaker/Microphone
• 2x SATA II
• 2x SATA III

Слотове за разширение:

• 1x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
• 1x PCI Express 2.0 x1 Slot

Конектори:

• 1x IR Header
• 1x Print Port Header
• 1x COM Port Header
• 1x Chassis Intrusion Header
• 1x TPM Header
• 1x CPU Fan Connector (4-pin)
• 1x Chassis Fan Connector (4-pin)
• 1x Power Fan Connector (3-pin)
• 1x 24 pin ATX Power Connector
• 1x 4 pin 12V Power Connector
• 1x Front Panel Audio Connector
• 2x USB 2.0 Headers (Support 4 USB 2.0 ports)

Съхранение:

•  2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
