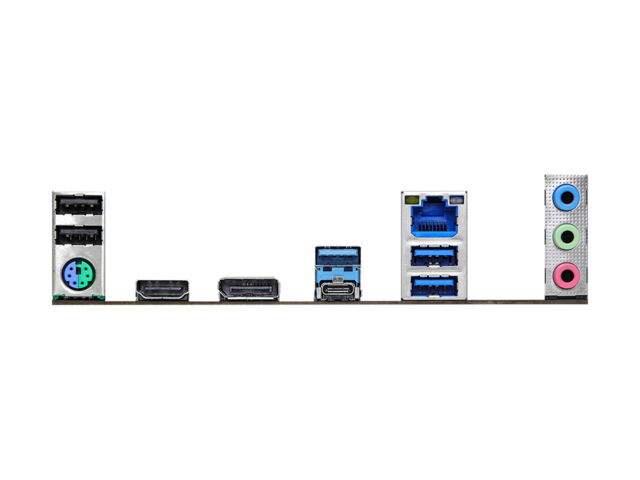

Интерфейси:

• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• 11th Gen Intel^® Core™ Processors
  - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
• 10th Gen Intel^® Core™ Processors
  - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*
  - 3 x PCI Express 3.0 x1 Slots
  - Поддържа AMD Quad CrossFireX™ и CrossFireX™
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVi (Integrated WiFi/BT)

Съхранение:

• 6 x SATA3 6.0 Gb/s Connectors
• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel^® Core™ processors only)
• 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

RAID:

• Поддържа RAID 0, RAID 1, RAID 5 and RAID 10 за SATA
• Поддържа RAID 0 and RAID 1 за M.2 NVMe

Конектори:

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

Памет:

• Двуканална архитектура на паметта
• 4 x DDR4 DIMM Slots
• 11th Gen Intel^® Core™ Processors поддържа DDR4 non-ECC, небуферирана до 4800+(OC)
• 10th Gen Intel^® Core™ Processors поддържа DDR4 non-ECC, небуферирана до 4666+(OC)
• Поддържа ECC UDIMM memory modules (operate in non-ECC mode)
• Макс. капацитет на системната памет: 128GB
• Поддържа Intel^® Extreme Memory Profile (XMP) 2.0
