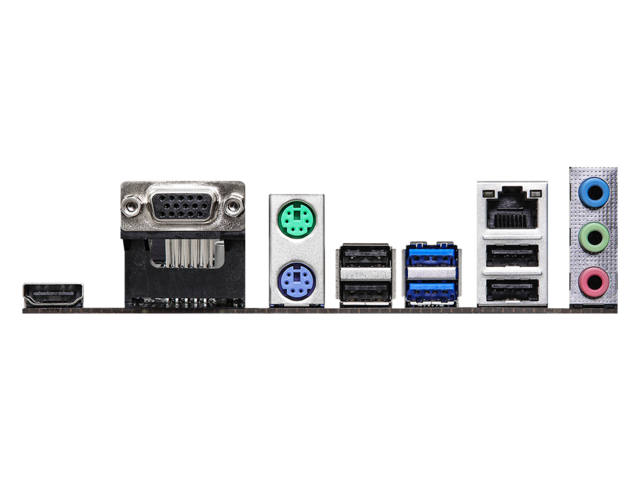

Интерфейс:

• 1 x PS/2 Keyboard Port
• 1 x PS/2 Mouse Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 4 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Памет:

• 2 x DDR4 DIMM, поддържащи до 64GB системна памет
• Архитектура с две канални памети
• DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, небуферирана памет
• Поддържа ECC UDIMM
•  Intel Extreme Memory Profile (XMP) 2.0

Слотове за разширение:

• 1 x PCI Express 4.0 x16 Slot (11-то поколение процесори Inte)
• 1 x PCI Express 3.0 x16 Slot (10-то поколене процесори Intel
• 1 x PCI Express 3.0 x1 Slot

Съхранение:

• 4 x SATA3 6.0 Gb/s конектори, поддържат Intel® Rapid Storage Technology 18, NCQ, AHCI и Hot Plug

Конектори:

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
