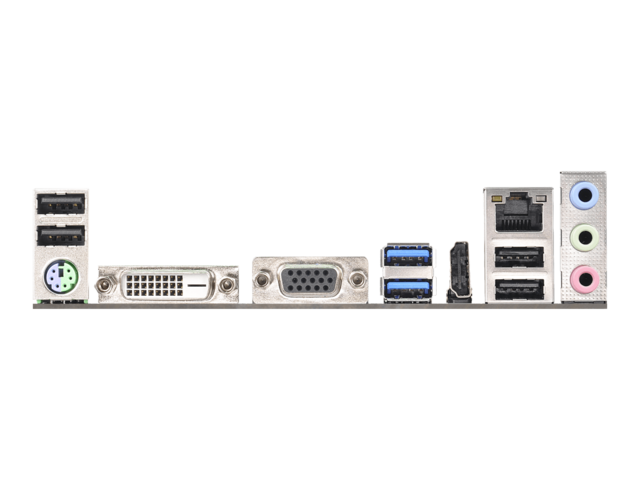

Интерфейси:

• 1 x PS/2 за мишка/ клавиатура
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
• 2 x USB 3.1 Gen1 Ports (AMD A68H (Bolton-D2H)) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD аудио жака: Line in / Front Speaker / Microphone

Слотове за разширение:

• 1 x PCI Express 3.0 x16 слот (PCIE1@ x16 режим)
• 1 x PCI Express 2.0 x1 слот
• 1 x PCI слот

Kонектори:

• 1 x Print Port Header
• 1 x COM Port Header
• 1 x Chassis Intrusion Header
• 1 x TPM Header
• 1 x CPU Fan Connector (4-pin)
• 1 x Chassis Fan Connector (4-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.1 Gen1 Header by ASMedia ASM1042A (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Съхранение:

• 4 x SATA3 6.0 Gb/s конектора, поддържащи RAID (RAID 0, RAID 1 и RAID 10), NCQ, AHCI и Hot Plug

Памет:

• 2 цокъла DDR3 DIMM, поддържащи до 32GB системна памет
• Поддръжка на модули памет DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, небуферирана памет

Комплектът включва:

• 2x SATA Data кабел

Сертификати:

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
