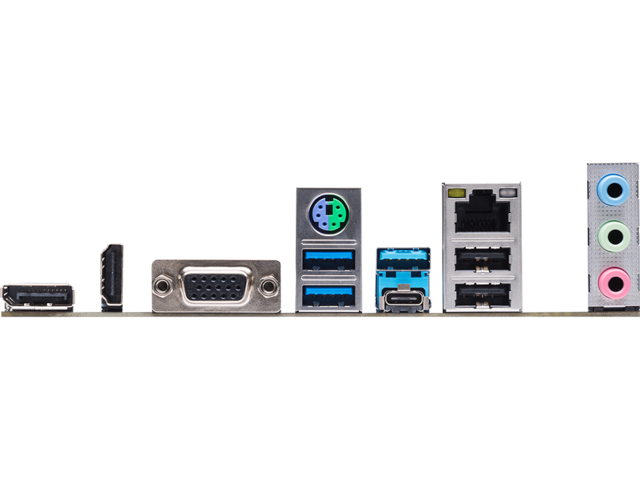

Интерфейс:

• 2 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Памет:

• Технология за двуканална памет DDR4
• 2 x DDR4 DIMM слота, макс. капацитет на системната памет 64GB
• Поддържа DDR4 non-ECC, небуферирана памет до 5066+(OC)
• Поддържа модули памет ECC UDIMM (работят в режим non-ECC)
• Поддържа Intel® Extreme Memory Profile (XMP) 2.0

Слотове за разширение:

• 1 x PCIe Gen4x16 слот
• 2 x PCIe Gen3x1 слота
• 1 x M.2 Socket (Key E), поддържа тип 2230 WiFi/BT PCIe WiFi модул

Съхранение:

• 4 x SATA3 6.0 Gb/s
• 1 x Hyper M.2 Socket (M2_1, Key M), поддържа тип  2260/2280 PCIe Gen4x4 (64 Gb/s) режим
• 1 x Ultra M.2 Socket (M2_2, Key M), поддържа тип 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) режими
• Поддържа RAID 0, RAID 1, RAID 5 and RAID 10 за SATA

Конектори:

• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
