Интерфейс:

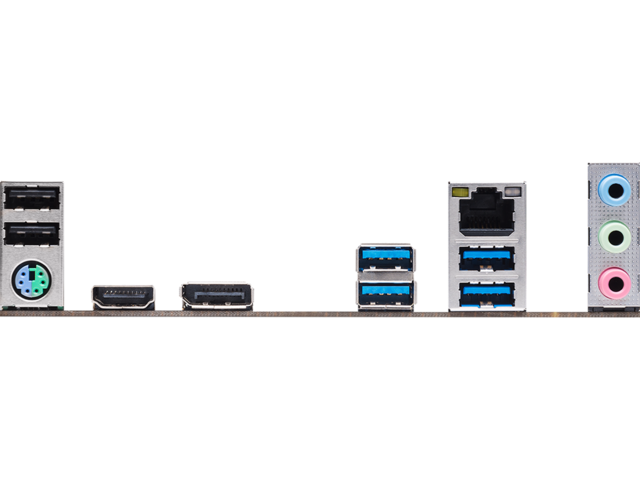

• 3 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Памет:

• Технология за двуканална памет DDR4
• 4 x DDR4 DIMM слота
• Макс. капацитет на системната памет: 128GB
• Поддържа DDR4 non-ECC, небуферирана памет до 4800+(OC)
• Поддържа модули памет ECC UDIMM (работят в режим non-ECC)
• Поддържа Intel® Extreme Memory Profile (XMP) 2.0

Слотове за разширение:

• 2 x PCIe x16 слота (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
• 1 x PCIe Gen3x1 слот
• Поддържа AMD CrossFire™
• 1 x M.2 Socket (Key E), поддържа тип 2230 WiFi/BT PCIe WiFi модул и Intel^® CNVi (Integrated WiFi/BT)

Съхранение:

• 4 x SATA3 6.0 Gb/s порта

• 1 x Hyper M.2 сокет (M2_1, Key M), поддържа тип 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) режим

• 1 x Ultra M.2 сокет (M2_2, Key M), поддържа тип 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) режим

• Поддържа RAID 0, RAID 1, RAID 5 и RAID 10 за SATA устройства за съхранение

Конектори:

• 1 x SPI TPM Header

• 1 x Chassis Intrusion and Speaker Header

• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x Front Panel Audio Connector

• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

• 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
