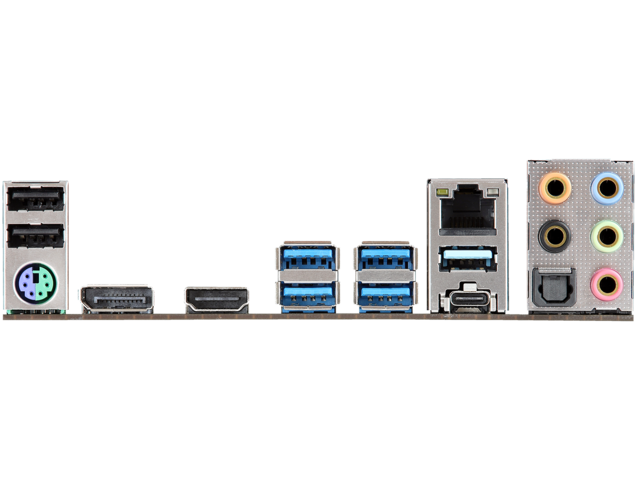

Интерфейси:

•  1 x PS/2 за мишка/ клавиатура
• 1 x HDMI
• 1 x DisplayPort 1.2
• 2 x USB 2.0
• 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s)
• 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s)
• 4 x USB 3.1 Gen1
• 1 x RJ-45 LAN порт с лед индикатор
• 1 x Optical SPDIF Out Port
• HD адудио жак: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Слотове за разширение:

AMD Ryzen серии CPUs (Matisse, Summit Ridge and Pinnacle Ridge)

• 1 x PCI Express 3.0 x16 слота (PCIE2: x16 режим)
• 1 x PCI Express 2.0 x16 слота (PCIE3: x4 режим)

AMD Ryzen series CPUs (Picasso, Raven Ridge)

• 1 x PCI Express 3.0 x16 слота (PCIE2: x8 режим)
• 1 x PCI Express 2.0 x16 слота (PCIE3: x4 режим)

AMD Athlon series CPUs

• 1 x PCI Express 3.0 x16 слота (PCIE2: x4 режим)
• 1 x PCI Express 2.0 x16 слота (PCIE3: x4 режим)
• 1 x PCI Express 2.0 x1 слота

Конектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 1 x Addressable LED Header
• 1 x AMD Fan LED Header
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

Съхранение:

•  4 x SATA3 6.0 Gb/s конектора , поддръжка на RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket (M2_1), поддръжка на M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridg) или Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU and Raven Ridge 2)
• 1 x M.2 Socket (M2_2), поддръжка на M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s модул
