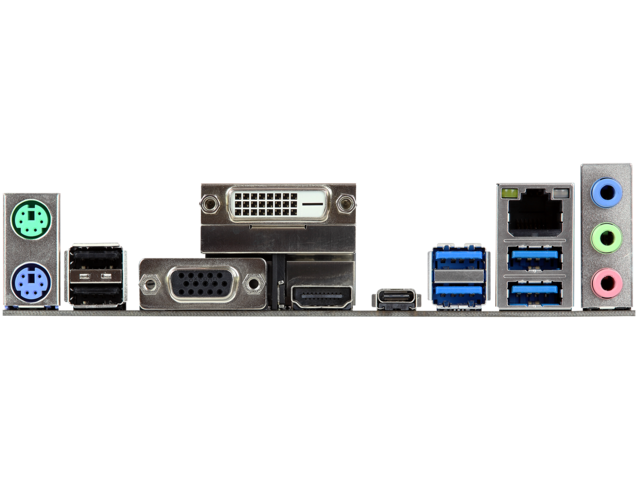

Интерфейси:

•  1 x PS/2 порт за мишка
•  1 x PS/2 порт за клавиатура
• 1 x D-Sub порт
• 1 x DVI-D порт
• 1 x HDMI порт
• 2 x USB 2.0 порта (Поддържа ESD Protection)
• 4 x USB 3.1 Gen1 порта (Поддържа ESD Protection)
• 1 x USB 3.1 Gen1 Type-C порт (Поддържа ESD Protection)
• 1 x RJ-45 LAN Port с LED (ACT/LINK LED и SPEED LED)
• HD аудио жака: Line in / Front Speaker / Microphone

Слотове за разширение:

AMD Ryzen серии CPUs (Matisse, Summit Ridge и Pinnacle Ridge)

• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
• 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)

AMD Ryzen series CPUs (Picasso и Raven Ridge)

• 1 x PCI Express 3.0 x16 слот (PCIE2: x8 режим)
• 1 x PCI Express 2.0 x16 слот (PCIE3: x4 режим)

AMD Athlon series CPUs

• 1 x PCI Express 3.0 x16 слот (PCIE2: x4 режим)
• 1 x PCI Express 2.0 x16 слот (PCIE3: x4 режим)
• 1 x PCI Express 2.0 x1 слот

Конектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 1 x Addressable LED Header
• 1 x AMD Fan LED Header
• 1 x CPU Fan Connector (4-pin)
• 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x AMD LED Fan USB Header
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

Съхранение:

•  4 x SATA3 6.0 Gb/s конектора , поддръжка на RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket (M2_1), поддръжка на M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) или  Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)
• 1 x M.2 Socket (M2_2), поддръжка на M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
