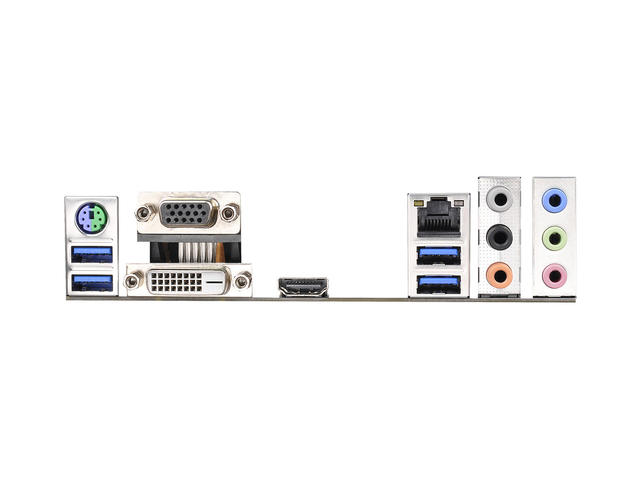

Интерфейси:

• 1x PS/2 мишка/клавиатура
• 1x D-Sub
• 1x DVI-D
• 1x HDMI
• 4x USB 3.0
• 1x RJ-45
• HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 6x SATA3 6.0 Gb/s

Слотове за разширение:

• 2x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)
• 2x PCI Express 3.0 x1 Slots (Flexible PCIe)
• Supports AMD Quad CrossFireX and CrossFireX

Конектори:

• 1x Print Port Header
• 1x COM Port Header
• 1x TPM Header
• 1x Chassis Intrusion and Speaker Header
• 1x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• 2x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector
• 1x Front Panel Audio Connector
• 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Съхранение:

•  6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Аксесоари:

• 2x SATA Data кабел

Сертификати:

• FCC, CE, WHQL
• ErP/EuP Ready (ErP/EuP ready power supply is required)
