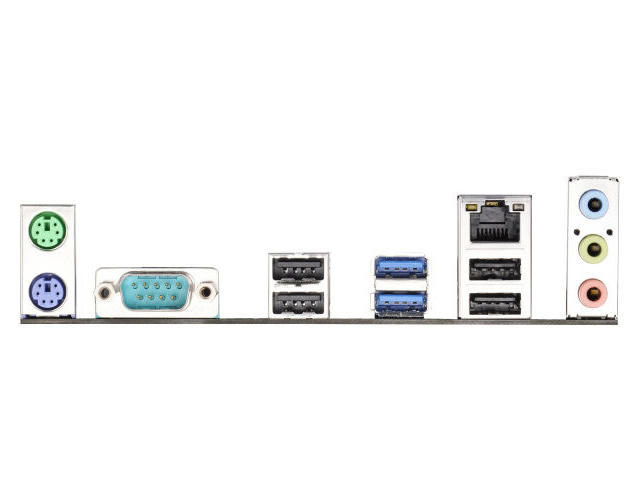

Интерфейси:

• 1x PS/2 мишка
• 1x PS/2 клавиатура
• 1x Serial Port: COM1
• 4x USB 2.0
• 2x USB 3.0
• 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jack: Line in / Front Speaker / Microphone

Слотове за разширение:

• 1x PCI Express 2.0 x16 slot (PCIE3 @ x16 mode)
• 3x PCI Express 2.0 x1 slots
• 2x PCI slots

Конектори:

• 6x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug
• 2x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
• 1x ATA133 IDE connector (supports 2 x IDE devices)
• 1x Floppy connector
• 1x IR header
• 1x HDMI_SPDIF header
• 1x Power LED header
• 1x CPU Fan connector (4-pin)
• 1x Chassis Fan connector (4-pin)
• 1x Power Fan connector (4-pin)
• 24 pin ATX power connector
• 8 pin 12V power connector
• CD in header
• Front panel audio connector
• 3x USB 2.0 headers (support 6 USB 2.0 ports)
• 1x USB 3.0 header (supports 2 USB 3.0 ports) (Etron EJ188)

Комплектът включва:

• Упътване за бързо стартиране
• 2x SATA Data кабел

Сертификати: FCC, CE, WHQL
